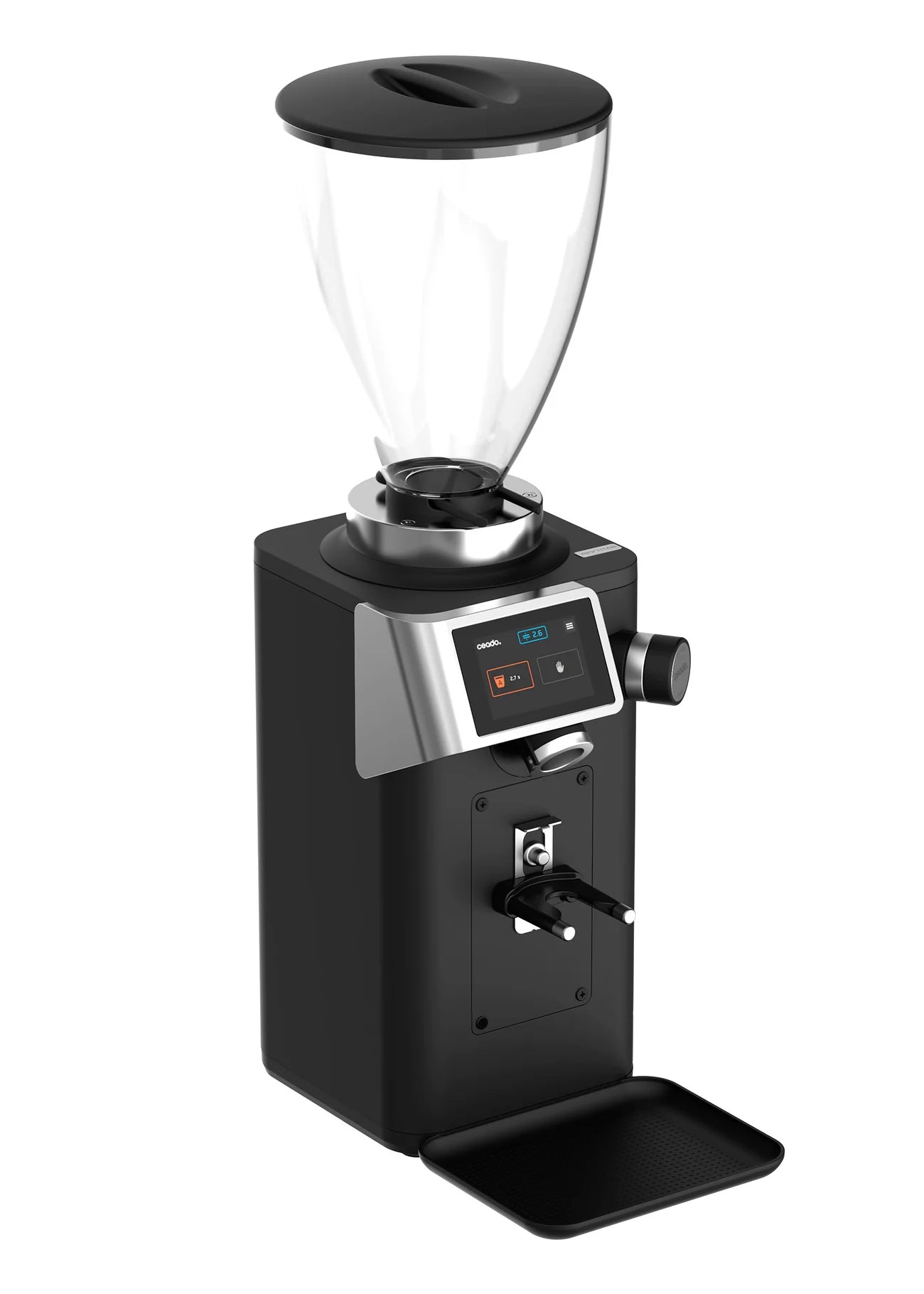

Ceado REV TITAN Espresso Grinder with PFA

$2,799^.00 + No sales tax

Select version:

Select size:

Select color:

Available · Ships in 4 - 6 weeks

This model is currently available to reserved orders only.

Pre-Order

Have a question?

Our Coffee Specialists are here for you.

Price Match Policy

12-Month Warranty

30-Day Returns

Ceado REV TITAN Espresso Grinder with PFA Black Product Details

Product Overview
For higher volume or faster service, the Ceado REV Titan is equipped with titanium coated, hardened steel burrs and a more robust 6 A motor for an output of 6 g/s at espresso fineness. The ALIGN (Advanced Leveling Intelligent Grinding Nexus) system tracks burr position digitally, so your setting is always visible on‑screen and you can “pin” reference points to return to as needed.. Choose models with WAM (Weight Adjustment Module) for grind‑by‑weight dosing, or without WAM for traditional time‑based operation—both built on the same chassis with a modern asymmetrical design. WAM vs. Non-WAM WAM (Weight Adjustment Module): Tares your portafilter and dispenses by weight with 0.1 g precision; three programmable doses (A/B/C) plus manual; two activation styles pre-selected start with automatic activation or PFA (portafilter activation) bypass with touch screen grinding. Non‑WAM: Time‑based dosing with pre‑selected, two‑step start, PFA bypass, and click‑start modes; optional pulsing lets you top‑off a partial dose. Key Features Titanium‑Coated 83mm Burrs – Harder edges for longevity; grinder tracks burr life and keeps a service history. 2,500kg lifespan. ALIGN Digital Positioning – Stepless adjustment with a live numeric readout; tap to view setting; pin current position for quick return; bottom‑burr moves so removing the top burr doesn’t lose your setting. Fast & Quiet – 6 g/s at espresso fineness with lower noise than prior Ceado prosumer models. Serviceable by Design – Grinds chute removes via a single screw for deep cleaning and exposes the anti‑static de‑clumper; rear fan vent cover and filter pops out for rinsing; on‑screen filter‑clean reminder. Thermal Management – Milled aluminum grind chamber acts as a heat sink; fan has three duty profiles (1-home use, 2 default, 3-high‑volume) driven by an hourly grind‑count algorithm. Work Area Light – Chute mounted light with adjustable brightness (25–100%) and color (white, blue, violet, amber). UI & Controls – Sleep/standby, display brightness, language, date/time, QR user manual, firmware info & factory reset, manager lock permissions. Scale activation/calibration menu supports later WAM installation.

Technical Details
Dosing	Grind-by-Time
Burrs	83mm Titanium Coated Steel
Grinding capacity	6 g/s
Bean hopper capacity	1600 g
Burr speed	1700 rpm
Burr grind life	2,500kg
Burr type	Flat Steel
Control	Touchscreen
Physical Measurements
Width	7.9"
Depth	10.6"
Height	24.8"
Net weight	37.5 lb
Shipping weight	41.4 lb
Power
Voltage	220-240 V \| 110-120 V
Frequency	50-60 Hz
Wattage	740 W
Features
Grinder Features	Time-Based Grinding, Display Customization, Easy to Access Burrs, Digital Burr Positioning, Internal Fan, Noise Reduction
Programmable Grinding	Single, Double, Triple Shot
NSF Certified	Yes
Grinder Setting Controls / Adjustment Type	Stepless
Dispensing Method	Doserless
Display Type	Touchscreen
Controls and Additional Features	Programmable Dosing, Worn Burrs Alert, Fan Filter Alert, Display Management, Screen Brightness, Grinding Light
App Connectivity	No
Model & Series Information
Series	REV
Color	Black
Warranty	12-month parts warranty
